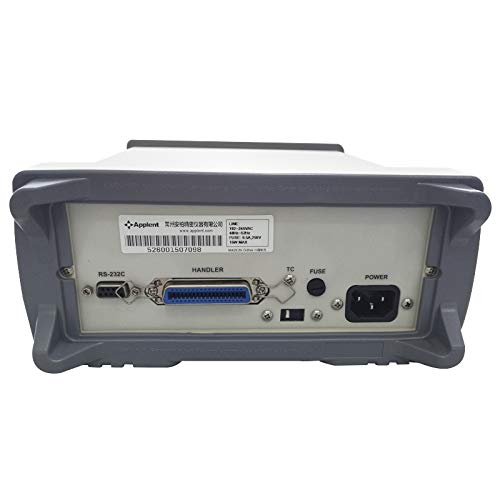

AT526 Battery Internal Resistance Tester Range 0.001mohm - 33.000k ohm

AT526/AT526B is brand-new design DC resistance meter with high precision and high stability, which adopts high-performance 32dgt ARM micro processor to control. 3.5 inches true-color LCD Chinese and English display and it is easy to operate. It is upgrade of AT520. It is high performance and intelligent instruments which is widely applied to test contact resistance, battery voltage and battery internal resistance. New-improved sampling circuit, which can measure all kinds of batteries, plus the sorting and beep settings apply to automation production line test. NEW Specifications AT526 Battery Internal Resistance TesterAT526B Battery Internal Resistance Tester ParametersAC resistance, DC voltage AccuracyResistance: 0.5% Voltage: 0.05%Resistance: 0.5% Voltage: 0.05% RangeResistance: 0.001m - 33.000k Voltage: 0.00001V – 120.0000VDCResistance: 0.001m - 33.00 Voltage: 0.0001V – 60.000V DC Signal SourceAC 1kHz, open-circuit voltage <20mV, measurement current: <150mA RangeAutomatic and manual with 6 ranges Automatic and manual with 4 ranges Speed145 t/s, 30 t/s, 10 t/s, 1 t/s30 t/s, 10 t/s, 1 t/s Result DisplayShow, ABS, %, , sorting results Display MaxResistance: 33,000, Voltage: 1,200,000Resistance: 33,00, Voltage: 60,00 AdjustmentShort-circuit reset for all range ComparatorNG-LO, GD-IN, NG-HI display and output. beep is adjustable TriggerInternal, manual, and external InterfaceRS232C, USB, Handler interface (PLC)Optional RS232C, USB interface OthersDetection of damage test wire, TFT true color LCD display, keypad lock and data hold function, internal memory and U-disk record GENERAL FEATURES Power SupplyVoltage: 85V AC - 240V AC Frequency: 50Hz Power: Max 15VA Size264mm (Width)x107mm (Height)x350mm (Depth) 4kg ORDERING INFORMATION Accessories ATL502 Kelvin test leads AT502A test probe ATL108 RS232 communication cable ATL502 Kelvin test leads ATL108 RS232 communication cable
