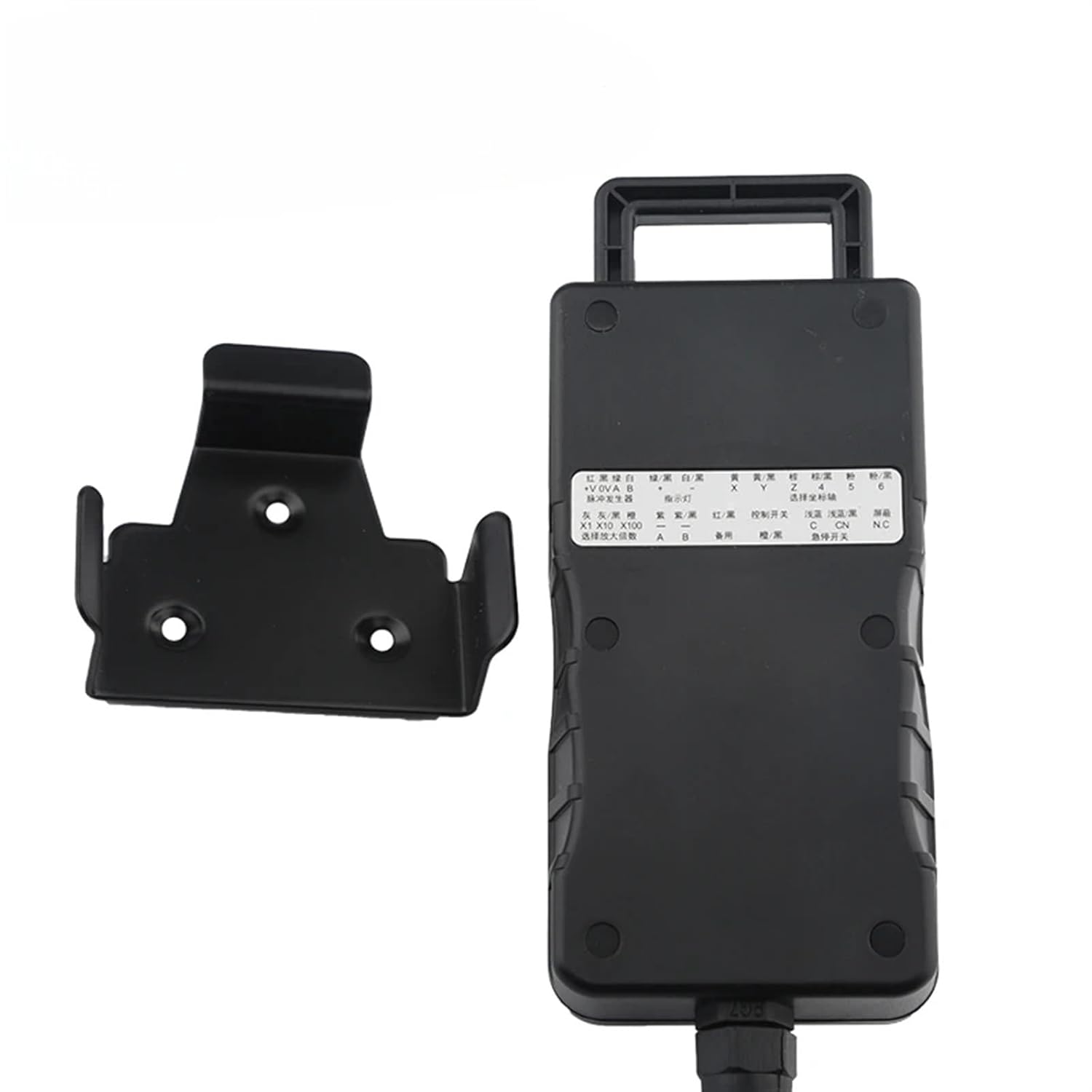

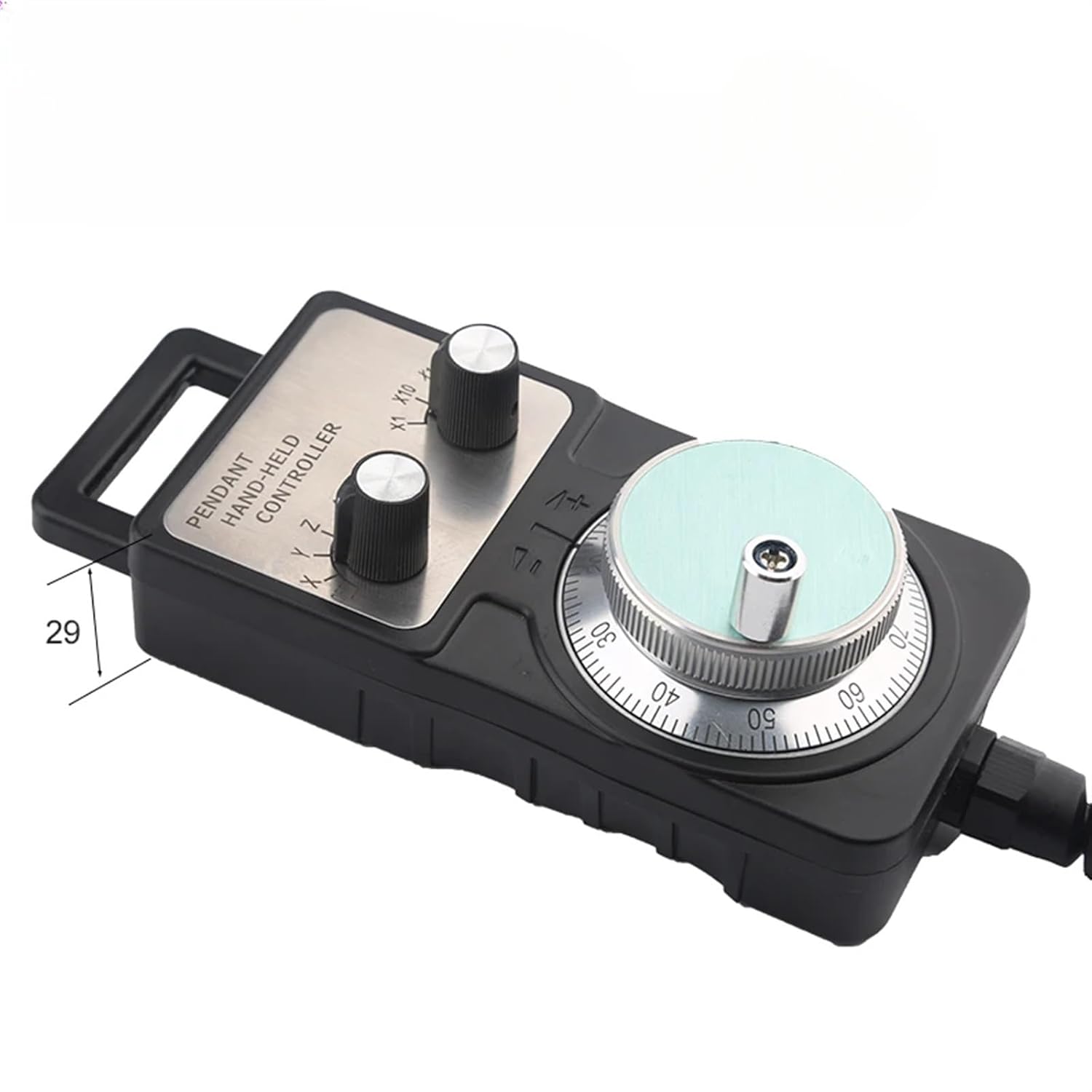

Handwheel Pulse Generator Electronic MPG 15-Pin Connector Hanging Router System(Ncstudio)

Pulse GeneratorsFeature:Unconnected wires must be cut into bare copper, and then wrapped one by one. Do not touch any other circuits, components and shells to avoid short circuits1. Please read the manual carefully before wiring, so as not to affect the operation of the handwheel.2. The positive and negative poles of the encoder must not be faulty. The voltage is too high to burn, usually 5V, and a single system such as 12V, after 24V.3. The COM point is the common point of the handwheel switch and must be connected, otherwise the switch cannot work normally.4. Handwheel operation is light and easy to be damaged by collision. Do not use too much force when rotating the code plate and switch, so as not to affect the service life5. If there is no A-, B- signal, no need to connect6. If does not have A-, B- signals, and does not have A-, B- signals, these signals are not connectedVoltage: 5V, 12V, 24VResolution :25, 100Adsorption method: magnet adsorption or hookOutput circuit: open collector, voltage output, complementary output, long wire driveApplication industry: machine toolsUses and featuresHigh insulation strength, with shaft transfer switch, oil discharge design, with X1,X10,X100 three levels of multiplier, can realize 6 axis and multiplier switch.1. This product does not have a connector by default. 2. Wrong connection of the positive and negative poles of the pulse power supply will cause the pulse to burn out. Please pay attention to the positive and negative poles of the pulse power supply when installing. In addition, when installing the system, please make sure that the system output to the pulse power voltage is correct before wiring.3. The operating voltage of the pulse generator is +5V, +12V and +24V, etc. Please confirm the voltage type before wiring.4. The output pulses of the pulse generator are AB and A/AB/B, etc. Please confirm the model first. (If there is no A-B-signal, don't connect; has no A-B-signal, and doesn't have A-B-signal don't connect)5. The COM terminal can be connected to DC24V, DC5V, DC12V or DCov according to the requirements of the customer's machine tool.6. If COM is DC24V, please connect LED+ and COM in parallel.7. If COM is DCOV, please connect LED- and COM in parallel.System customization, Good control.System customization, perfect match! Ergonomic principles set,meter, anti-slip prominent lines, the center of in the palm.Environment-friendly plastic, Anti-interferenceSystem customization, perfect match! Ergonomic principles set, meter, anti-slip prominent lines, the center of in the palm. aluminum code plateIntegrated molding, fine workmanship, strong metal sense;Joints are made of special treatment, waterproof, oil-proof;Paint scale, do not fade to tang;Fine tuning dial scale thick and deep prominent,good skid resistance, smooth rotation, no jump.Cable protective sleeveThe handwheel inlet adopts waterproof connector + extended cablesheath design, which is waterproof and easy to disassemble.
