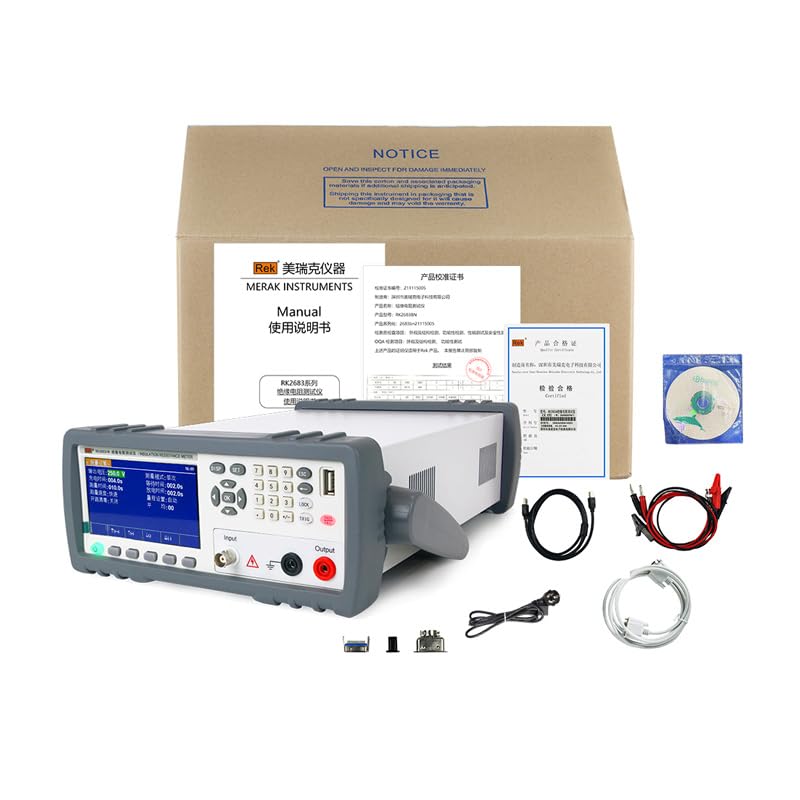

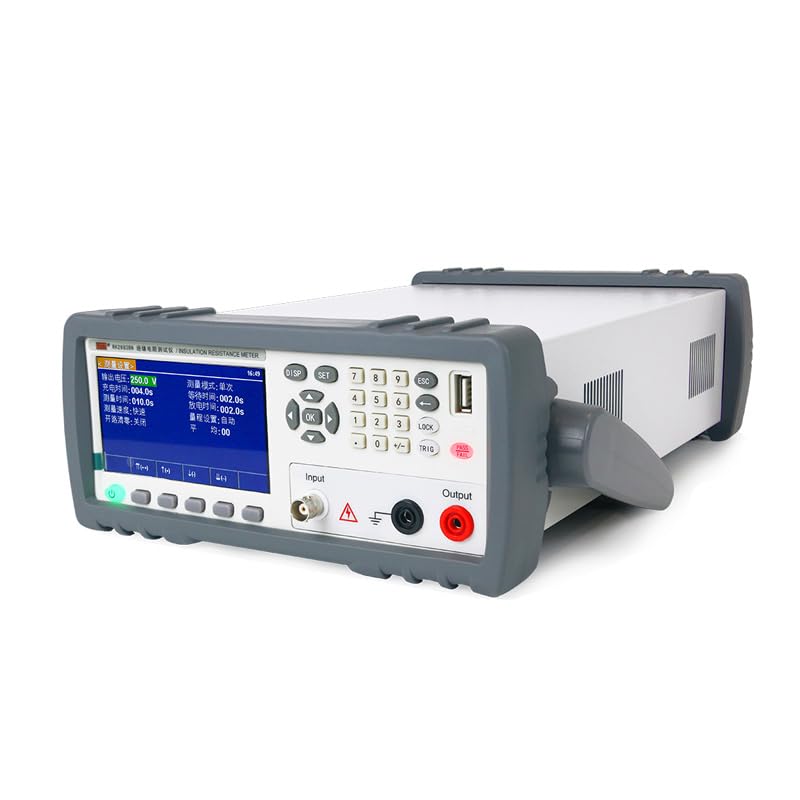

RK2683BN Insulation Resistance Tester Resistance Range 10kΩ-5TΩ Voltage 500V Standard USB RS232 Communication Interface
Product details
| Management number | 210914383 | Release Date | 2026/04/04 | List Price | $319.20 | Model Number | 210914383 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
RK2683BN series insulation resistance tester is a test instrument that can quickly measure the insulation performance of electronic components, media materials, equipment and wires and cables, etc. It has the function of double test and display of insulation resistance leakage current. RK2683AN/BN is easy to line online operation, equipped with a communication interface to realize the remote operation of all functions of computer instruments. The instrument has strong anti-disturbance ability, and the test results are stable and reliable.
- Test resistance:10KΩ~5TΩ;Test accuracy: 1>10nA +2%1<10nA ±5%1<1nA ±10%; Voltage accuracy:±1%+0.5V;
- Display mode: 4.3-inch color LCD screen; Range mode: Manual / automatic; Measuring speed fast speed: 30 times/s; slow speed: 8 times/s
- Waveform scanning:R-V、R-l Graph scan test function;Storage:Internal and external U disk of instrument.Power requrrements:AC220V+10%，50Hz/60Hz+5%

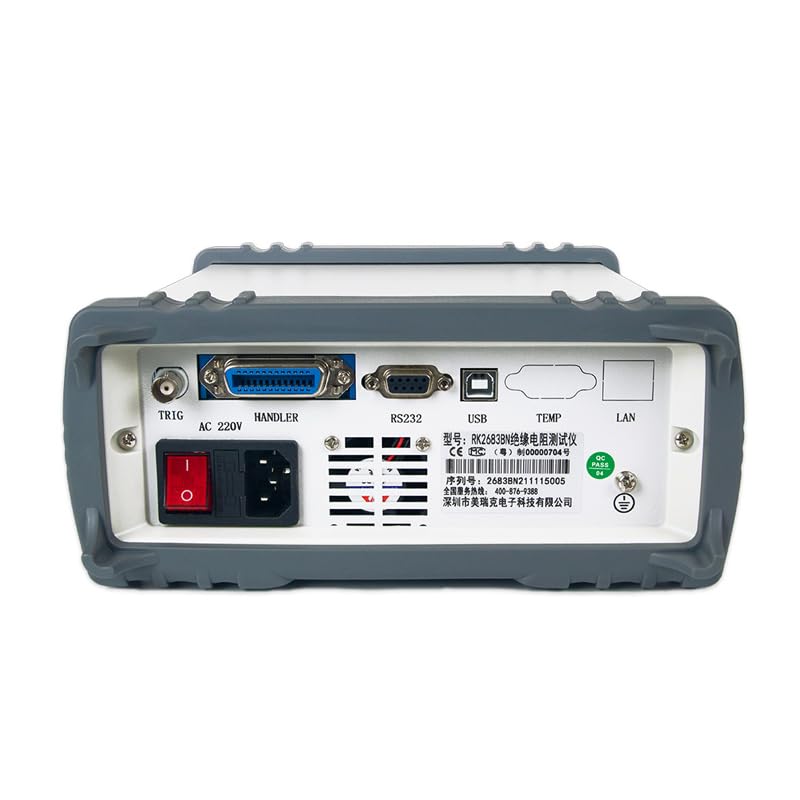

- Standard interface:RS-232C interface Handler(PLC)interface USB HOST, USB DEVICE;Working:10℃~40℃，≤80%RH
- Adopt the current mainstream 32bitsCPU and high-density SMD mounting process.Set insulation resistance meter, picoammeter, digital potentiometer, digital high voltage source meter four in one professional instrument
| Color | Gray |
|---|---|
| Model | RK2683BN |
| Brand Name | Tonghui |
| Style Name | Industry |
| Manufacturer | Rek |
| Power Source | Corded Electric |
| Included Components | ABS |
