Rohn 25G Series 50' Basic Tower Kit with 25AG Top

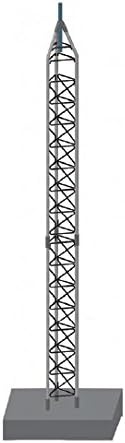

These kits use the bottom 10' section to partially embed in a concrete pad. You can also purchase a variety of base sections, base plates, brackets, etc to accommodate this kit - see our store. *Professional Installation Required* *There are no wind/ice/load guidelines for this set up without being guyed or bracketed - you must consult a professional installer. We make no claims that this set up will handle any certain wind/ice/load specifications. This kit is offered as a convenience to our customers* *Rohn 25G is NOT rated at self-supporting over 40'. Your tower will need to be guyed and/or bracketed according to the specifications in the Rohn 25G Guide. See Rohn or Antenna Parts Outlet website for this information*. Grounding kits are also available for purchase separately (see Rohn BGK3G) **These tower sections must ship via FREIGHT. Your delivery location must be able to accept a full size semi. If a forklift is not available at the delivery location (such as a residence or business without a dock), you will be required to unband the pallet and remove the tower sections from the truck by hand (average weight is 45 lbs per section). When the freight company contacts you to schedule a delivery appointment they will ask you if you require a liftgate at delivery - this would allow the driver to remove the pallet as a whole from the truck. This service is not standard and not included in your cost - if you wish to have a liftgate you will be responsible for those charges at delivery.

• INCLUDES: (4) ROHN 25G STANDARD 10' SECTIONS, (1) ROHN 25AG 9' TOP SECTION *50' is a nominal description - actual assembled height will be less if the bottom section is partially embedded in concrete*
• The ROHN 25G uses double bolted joints, proven to be the best method of joining tower sections for sturdiness and dependability. *See Rohn 25G Guides for Specifications and Installation Requirements. Professional Installation Required*

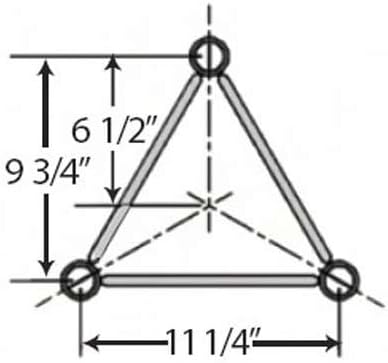

• 1-1/4" OD, 16 Gauge legs 5/16" OD Solid Bracing Completely hot-dipped galvanized after fabrication. Built on an 11 1/4" equilateral triangle design

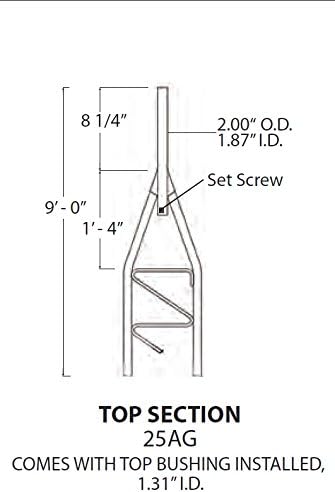

• Each section contains all required nuts and bolts shipped with each section. 25AG comes with a tapered top and integrated 16 Gauge 2" OD x 1.87 ID x 8-1/4" mounting pipe and set screw. The pipe comes with a factory-installed (removable) 1-1/4" tower mast bushing in the top. See description below for more information.
• This tower kit ships via freight only. See below for more information. *Be sure your contact number is current on your order*
