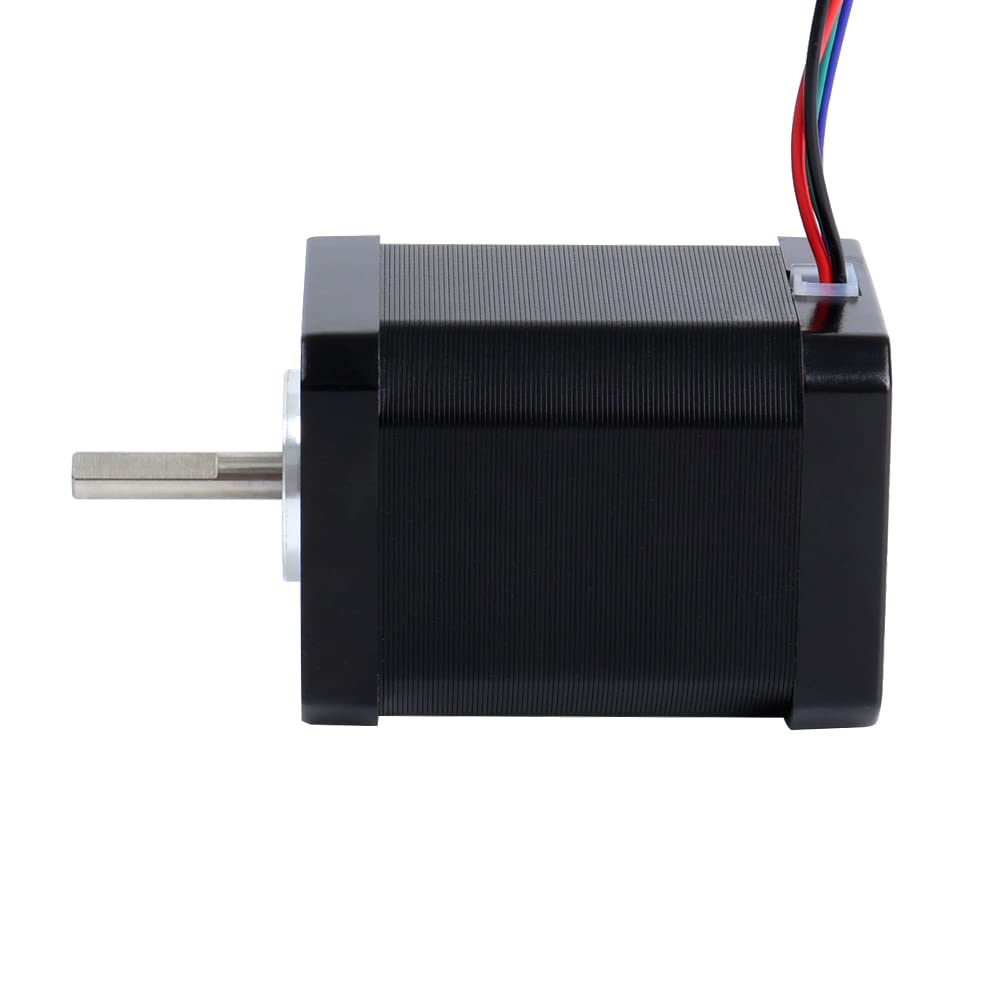

STEPPERONLINE E Series Nema 17 Stepper Motor Bipolar Stepper Motor 60Ncm 2.1A Extruder Motor. 3 Pack
Product details
| Management number | 211762973 | Release Date | 2026/04/04 | List Price | $16.78 | Model Number | 211762973 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
This is one of strongest bipolar Nema 17 stepper motor with 1.8 deg. step angle (200 steps/revolution). Each phase draws 2.1A, allowing for a holding torque up to 60Ncm Electrical Specification: * Manufacturer Part Number: 17HE24-2104S * Motor Type: Bipolar Stepper * Step Angle: 1.8 deg. * Holding Torque: 60Ncm * Rated Current/phase: 2.1A * Phase Resistance: 1.7ohms * Inductance: 3.1mH+/-20%(1KHz) Physical Specification: * Frame Size: 42 x 42mm * Body Length: 60mm * Shaft Diameter: 5mm * Shaft Length: 24mm * D-cut Length: 15mm * Number of Leads: 4 * Lead Length: 500mm * Weight: 500g Connection: Black(A+), Green(A-), Red(B+), Blue(B-) Warning: Make sure the motor connect to a constant current or chopper drive controller before you test motor. Connecting the motor directly to a power supply will destroy the motor.
- 3 packed, Very High Torque
- 60Ncm holding torque
- NEMA 17 bipolar 1.65"x1.65"x2.36" 4-wire
- 1.8 deg. step angle(200 steps/rev)
- Rated current 2.1A & resistance 1.7ohms
| Model | 3-17HE24-2104S |
|---|---|
| Voltage | 12 Volts |
| Brand Name | STEPPERONLINE |
| Item Weight | 1.2 Pounds |
| Manufacturer | STEPPERONLINE |
| Material Type | Metal |
